Inverter Flux Core  140

Product Description

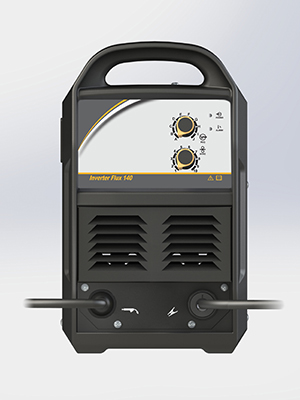

Inverter Flux Core 140

• Brand ARCRAFT

• Input Voltage 1~120 V

• Frequency 50/60 Hz

• Rated Capacity 2.4 kVA

• Current Adjustment(MIG) 30-105 A

• Rated Welding Current 105 A

• Maximum Output Current 130 A

• Rated Duty Cycle 30%

• Wire Feed Speed 60~200 in/min

• IP IP21S

• Insulation Grade H

• Cooling fan cooled

• Power cord (ft.) 6.6 ft.

• Product Weight 20 lbs.

• Shipping Weight 24.5 lbs.

• Welding capacities 24GA(0.024in/0.6 mm) to 3/16 in(4.8 mm).

• Accessories Included: 1*Ground Cable(with Groud Clamp); 1*Torch (150A FCAW Gun with 6ft cable); 1*0.030in. Contact Tips; 1*Product Manual

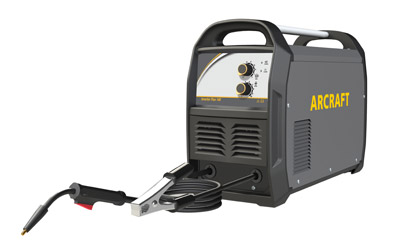

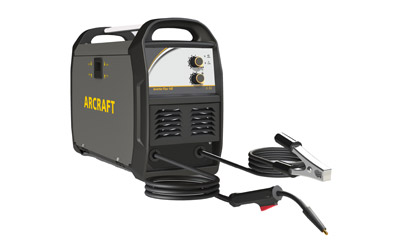

ARCRAFT Inverter Flux Core Welder

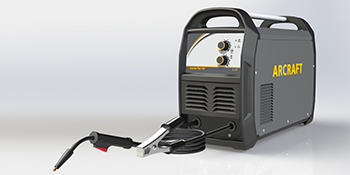

Portable ARCRAFT Inverter Flux Core Welder, Built-in welding torch and grounding cable with earth clamp.

It is an easy-to-use welder that is ideal for basic welding jobs at home or in the shop. This all-in-one welder package features advanced DC based inverter technology that produces a more stable arc and cleaner welds all while reducing weight down to only 20lbs!

The ARCRAFT Inverter Flux Core Welder also includes all the modern safety features such as thermal overload protection and cold start wire feeding so you can concentrate on the job, not the machine. Includes welder and gun package, contact tips and nozzles.

	All You Need for Flux Core MIG Welding with Efficiency Easy & User Friendly

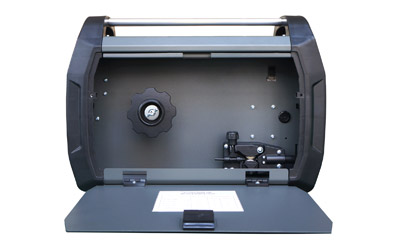

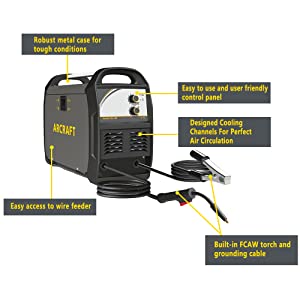

	• Easy-to-use right out the box. • Inverter Technology - lighter weight and more efficient. • Weighs only 20lbs.! • DC output for the most stable arc and cleaner welds • Variable Control for fine-tuned welding • Advanced safety features: Thermal overload protection and cold start wire feeding • Rugged, top load drive system takes standard 4 in. spools • Wire feeder and gun package - ready to weld. • Easy to use and user-friendly control panel. • Steeples welding voltage and wire feeding speed adjustment knobs.
	• Compact Design. • Small, compact , smart and patented design with high efficiency. Weight is only 19lbs. It is easy to move and storage.

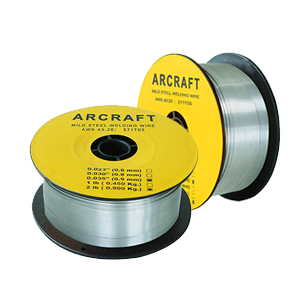

Variety of Flux Cored Wire	Applied Materials	Wherever you need
Excellent welding with Mild Steels (carbon steels/low-alloy steels) self-shielding flux-cored wires in diameters of 0.030’in(0.8mm), 0.035in (0.9mm).	Ideal for welding of Mild Steels (carbon steels/low-alloy steels) from 24GA(0.024in/0.6 mm) to 3/16 in(4.8 mm).	Excellent for maintenance/repair, DIY, metal art , auto body, farm/ranch and home repair applications.

ADVANTAGES

Ready to Weld	Reliable Quality	Safety

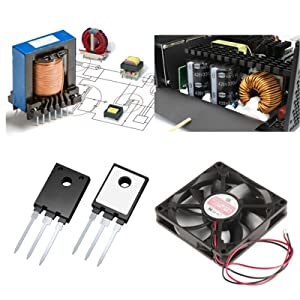

Ready to Weld package, easy to use and set up.	Quality of components; superior quality electrical key components has been use for it’s production. Such as PCB boards, Capacitors, Fan, IBT and heat sinks; In order to have maximum usage life.	Equipped with voltage protection and thermal protection for maximum safety. IP21S and H insulation grade for maximum safety for the welders.
