MIG  165

Product Description

MIG 140

• Brand ARCRAFT

• Input Voltage 1~120 V

• Frequency 50/60 Hz

• Rated Capacity 2.4 kVA

• MIG Welding Current 30-140 A

• TIG Welding Current 20-90 A

• Stick Welding Current 30-70 A

• Rated Duty Cycle 30%

• Wire Feed Speed 100~400 in/min

• Welding Wire Diameter 0.6mm(0.023in/0.025in)/0.8mm(0.030in)/0.9mm(0.035in)

• IP IP21S

• Insulation Grade F

• Cooling fan cooled

• Power cord (ft.) 6.6 ft.

• Product Weight 23.37 lbs.

• Shipping Weight 35.27 lbs.

• Welding capacities up to 3/16”(4.8mm)

• Accessories Included:1*MIG Torch with 10ft Cable(0 .030 Contact Tip Installed); Electrode Holder with 10ft Cable; 1*Groud Clamp with 10ft Ground Cable; 1*Shielding Gas Regulator with 2 Dials; 1*6.3ft Shielding Gas Hose; 1*Flux Core Nozzle(spare); 2*0.030 Contact Tips(spare); 1*Drive Roller (for 0.035“ Solid Wire/0.030” and 0.035” Flux Core Wire,Spare); 1*Product Manual

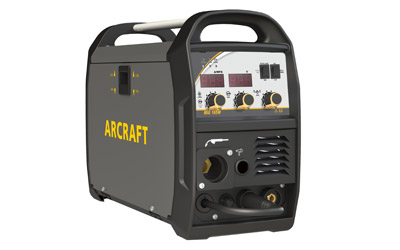

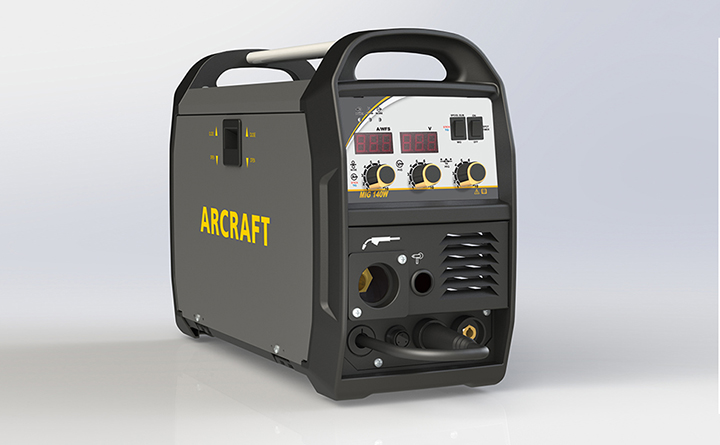

ARCRAFT MIG140 Multi -Process MIG(GMAW), MMA(SMAW) and Lift TIG(GTAW) Welder

1~120 Voltage ; Multi-Process ; MIG(GMAW), MMA(SMAW) and Lift TIG(GTAW) Welder ; All In One ; Best in It’s Class

• The ARCRAFT MIG140 is the latest all-around IGBT inverter welder that does professional-quality work at an Acceptable amount. Produces the most stable arc possible and provides the capability of welding thin or heavy gauge steel with precision and ease. Powerful 140-amp maximum welding output allows to use MIG, TIG or stick welding to fabricate steel up to 3/16-inch thick using standard consumables. You can also weld aluminum using the spool gun(no included in the package).

• Features such as infinitely adjustable tuning knobs and a spot weld timer are built into a compact portable multi-process welder that can fit in any shop. Do the Job Right with an Elite Series welder perfect for light-duty fabrication.

Knowing Your Welder

Variety of Materials can be Welded	Different type of Welding Wires	Applications

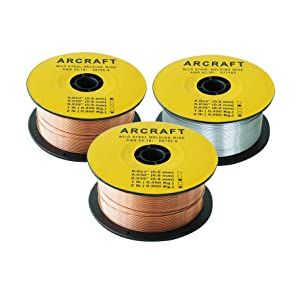

Ideal for welding of carbon steels, low alloy steels, stainless steel and aluminum from 24Ga.(0.6mm) up to 3/16”(4.8mm).	Excellent welding with Mild Steels (carbon steels/low-alloy steels), Aluminum and Stainless steels solid core and flux-cored wires (FCAW-G) in diameters of 0.035’’ (0.9mm) 0.030’’ (0.8mm), and 0.023/0.025 in. (0.6 mm). Suitable for up to 12lbs wire spools.	Wherever you need; excellent for maintenance/repair, DIY, metal art , auto body, farm/ranch and home repair applications.

User Friendly Easy to use and user friendly ; fully functional control panel.	Stick(MMA) Welding Built-in anti-sticking , hot start and adjustable arc force for Stick MMA welding.	Led Indicators Power , Overload and at work LED indicators. Equipped with voltage protection and thermal protection.	Robust & Tough Steel made main structure with smart & fancy design makes strong enough for tough conditions in different environment.
• Welding mode MIG,STICK and TIG welding selections. • Stepless spot welding timer, welding voltage and wire feeding speed adjustment knobs. • Digital Welding current and welding voltage displays , easily can be seen during the welding , shows exact figures during the welding process.

Features

Easy to take every where	Reliable Quality	Package & Accessories	Safety
Lightweight , Small , Compact and patented design. It is just 23.36 lb ( 10.6 kg) , Dimensions 19.29 in X 7.48 in X 13.18 (490 mm X190mm X 335 mm ) .Easy storage and to take within job-store or on the field	Quality of components; superior quality electrical key components has been use for it’s production. Such as PCB boards, Capacitors, Fan, IBT and heat sinks; In order to have maximum usage life.	Package includes; Welding Gun, Gas Regulator, Electrode Holder for Stick Welding, Earth Cable, Gas Hose, Contact tips and drive roll.	IP21S and F Insulation grade for maximum safety for the welders. Equipped with voltage protection and thermal protection for maximum safety.
