Arc 80I

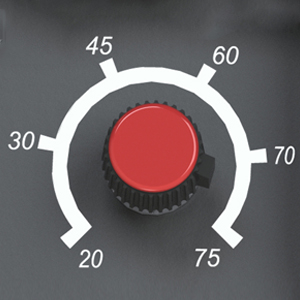

Powerful 75 Amp DC output welds materials up to 1/8in, Inverter technology requires less input power. Adjustable amperage dial offers 20–75 Amp DC output for versatility, Duty Cycle: 20% @ 75 Amp.
Compact, extra light weight case Shoulder strap plus removable/replaceable weld cables for easy portability.
Advanced IGBT technology, Continous welding, The efficient inverter-powered system produces smooth DC arc welds.
Built-in hot start, anti-stick and arc force features for quick and easy arc starting and restarts, Thermal overload protection.
Please feel free to contact us if you have any questions during use our products. We are providing full range professional welding products, please check our shop to get yourself ready for an efficient & safe welding.

sales@hugong.com 0086-21-51211666

Product Description

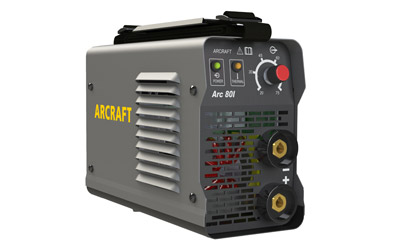

ARC 80 Inverter Arc Welder

• Brand ARCRAFT

• Welding Processes Stick/ARC/MMA

• Input Voltage 1~120 V

• Frequency 50/60 Hz

• Rated Capacity 2.4 kVA

• MMA Welding Current 20-75 A

• Rated Welding Current 75 A

• Maximum Output Current 90 A

• Rated Duty Cycle 40%

• IP IP21S

• Insulation Grade H

• Cooling fan cooled

• Power cord (ft.) 6.6 ft.

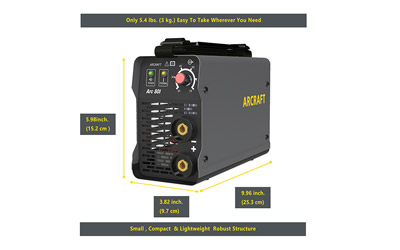

• Product Weight 6.3 lbs.

• Shipping Weight 9.8 lbs.

• Electrode Size (in.) 1/16, 5/64, 3/32

• Welds Up To (in.) 1/8

• Weldable Metals Mild steel, stainless steel, cast iron, hard surfacing

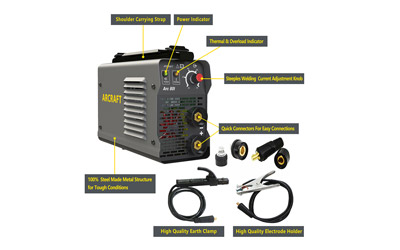

• Accessories Included: 1*Welder; 1*8.2ft. electrode cable and holder; 1*5ft. ground cable and clamp; 1*Shoulder strap

	Portable SMAW (Stick) ARC Welder
	• ARCRAFT ARC 80I Shielded Metal DC Arc (MMA)Welder is a compact, Lightweight Design with powerful 110/120 Volt Inverter-Powered DC Stick welder, 20 A to 75 A Welding amperage range.
	• The single-phase inverter stick welder features 120V input power. The efficient inverter-powered system produces smooth DC arc welds with electrodes up to 3/32in. and materials up to 1/8in. An excellent choice for use on mild steel, stainless steel, cast iron, and hard surfacing. Includes 6.6ft. electrode cable with holder, 5ft. ground cable and clamp, and shoulder strap.

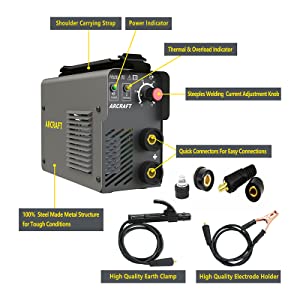

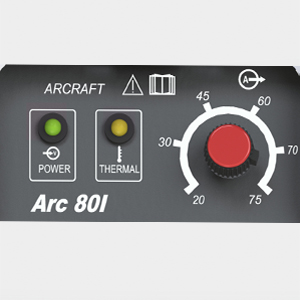

	• Easy-to-use and user-friendly control panel,steeples welding current knob,easy welding cable connections with quick type connectors, IP21S Protection Class.


Variety Material	Stick Electrode	Ideal Welding

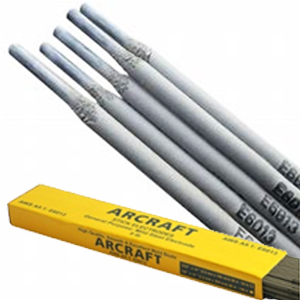

Ideal for welding of carbon steels, low-alloy steels and stainless steels.	Excellent arc characteristics and performance with electrodes in diameters of 1/16" ( 1.6 mm) to 3/32" (2.5 mm) and materials up to 1/8in; Rutile (AWS A5.1 : E6013) and Basic (AWS A 5.1:E 7018) type electrodes.	Excellent for repair / maintenance, DIY, metal art , farm/ranch and home repair applications.

Technology With High Performance That You Can Have With ARCRAFT Hobby 80

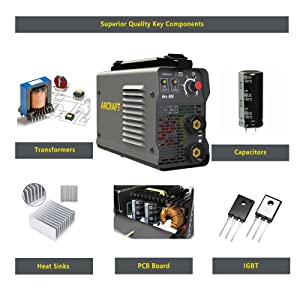

IGBT Inverter Technology

Voltage and Thermal Protection

Excellent Cooling

Easy to use

New Generation IGBT Inverter Technology with Built-in Anti-Sticking, Arc-Force and Hot Start.

Equipped with voltage protection this improves the reliability and safety.

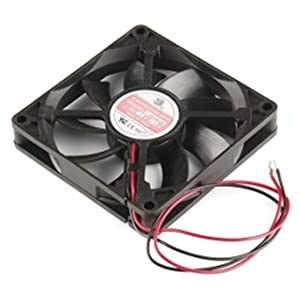

Strong and Reliable Fan cooling system for long time usage.

Easy-to-use and user-friendly control panel,steeples welding current knob,easy welding cable connections with quick type connectors.

Easy To Weld In Everywhere With Precise Ootput Control


Earth Clamp & Cable	Electrode Holder & Cable	Perfect Welding Performance	Lightweight design

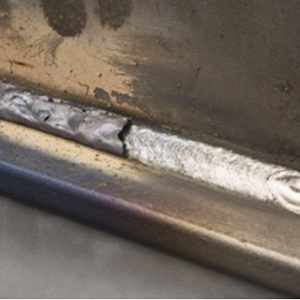

5 Feet Grounding cable with earth clamp and quick connector.	8.2 feet Electrode holder with quick connector and cable.	Precise and accurate output control that made stable arc as a result of perfect welding appearance.	Lightweight, small and compact design; Weight is only 6.3lbs. (2.86 kg.)

	ARC 80I	Hobby 80	Inverter Flux Core 140	MIG 140	MIG 165
Type	Stick(MMA/ARC) Welder	Stick(MMA/ARC) Welder	Flux Core Welder	MIG(TIG/Stick) Welder	MIG(TIG/Stick) Welder
Voltage	1~120(110/120) V	1~120(110/120) V	1~120(110/120) V	1~120(110/120) V	1~120/1~230 V
Rated Input Capacity (kVA)	3.74	5.06	5.75	6.9
Frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Rated Input Current	20 A	20 A	20 A	20 A	20(120V)/28(23V) A
Rated Capacity	2.4 kVA	2.4 kVA	2.4 kVA	2.4 kVA	2.4(120V)/6.4(230V) kVA
Rated Duty Current	40%	20%	30%	30%	40%(120V)/20%(230V)
IP	IP21S	IP21S	IP21S	IP21S	IP21S
Insulation Class	H	F	H	F	F
